Highlights

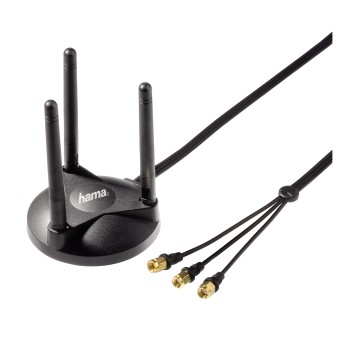

- Powerful, adjustable triple antenna for ideal reception conditions
- Enhances the speed and increases the range
- Incl. connection cable (approx. 80 cm) with three Reverse SMA sockets
- For MIMO and IEEE802.11n Wireless LAN Routers, Access Points and PCI cards with Reverse SMA connectors
- Impedance: 50 ohms
- Polarization: vertical
- Frequency range: 2.4-2.5 GHz
- Antenna gain: 2 dBi
- Angle of reflected beam: 360° horizontal and 80° vertical
Technical Details
Angle of Reflected Beam Vertical: | 80 ° |
Angle of Reflected Beam Horizontal: | 360 ° |
Impedance: | 50 Ohm |
Polarisation: | Vertical |
Aerial Gain: | 2 dBi |
Frequency Range: | 2,4-2,5 GHz |
Standard: | 802.11n |
