What it is
ASA is essentially a repacked / rebranded version of Cognio's ISMS Mobile 1.0 product, which provides the core technology. The family jewels come in the form of a CardBus card (AirMagnet calls it the Spectrum PC card) that contains the hardware guts of a miniature spectrum analyzer that covers the 2.4 and 5GHz 802.11a/b/g spectra, as well as the 4.94 - 4.99 GHz U.S. Public Safety Band.
Figure 1: The little wonder itself
Here's what's inside the card (from the ASA User Guide):
- Radio - The radio transceiver detects the RF spectrum and feeds this data to Spectrum Analysis Engine, SAgE
- SAgE - Spectrum Analysis Engine performs a Fast Fourier Transform (FFT) of the RF spectrum, and provides the feed of low-level data concerning the behavior of the RF spectrum. Low-level data includes basic information on the power vs. frequency in the spectrum at a given instant, and information on individual pulses in the RF spectrum. SAgE also performs on-board statistical analysis of the spectrum, and statistical analysis of RF pulses (which relieves CPUs of this processor intensive task)
- MCU - A programmable MicroController Unit (MCU), running proprietary software, provides low-level analysis of the data stream. The analysis engines include:
- Measurement Engine - Aggregates SAgE data, and normalizes it into meaningful units.
- Classification Engine - Identifies specific types of interferers (Bluetooth devices, microwave ovens, cordless phones and headsets, radar, etc.).
The card represents some pretty impressive engineering, especially considering that the ASA's closest competitor - Berkeley Varitronics Systems (BVS) Bumblebee - requires a PocketPC-sized "sled" to hold its RF circuitry. Specs (Figure 2)are pretty impressive too, most notably a noise level of only -124dBm and amplitude accuracy of +/- 2.5dBm.

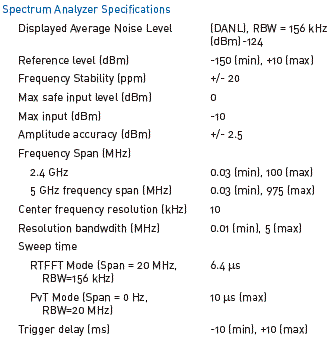

Figure 2: Spectrum Analyzer Specs
The card can be used with any notebook or tablet PC running Windows XP SP1 or SP2 that has a Type II CardBus slot. Note that the card cannot function as an 802.11a/b/g WLAN card, so can neither be used to connect to a wireless LAN nor run any of the other AirMagnet products. Note also that if the notebook or tablet that you run the ASA on has built-in Wi-Fi, you'll need to turn it off - for obvious reasons!
The card has an MMCX style connector - same as used on the old ORiNOCO and many current Buffalo Technology WLAN cards - for external antenna attachment. AirMagnet also includes a simple 2dBi dipole with short cable and clip for mounting the antenna on a notebook display.
