The 14dBi High Power Wireless Outdoor PoE Access Point provides secure Super G building-to-building network access in a durable all-weather outdoor enclosure. Enjoy this products long-distance range or add an additional high-gain antenna for the most challenging extended range projects. Power for this unit is supplied through a network cable (PoE), resulting in equipment and installation cost savings.
Support for the latest wireless security protocols ensures the highest level of network protection. A rugged UV-resistant aluminum housing (with mounting brackets), features an IP66/67 waterproof rating and delivers optimal performance in extreme weather conditions. Remote network management, SNMP support and the flexibility afforded by Power over Ethernet technology makes this product well suited for building-to-building networking.

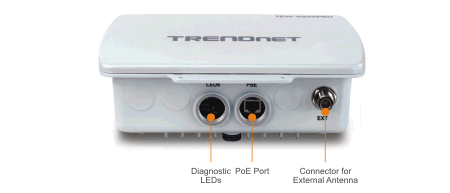

| Hardware | | Standards | Wired: IEEE 802.3 (10Base-T), and IEEE 802.3u (100Base-TX) Wireless: IEEE 802.11b/g, IEEE 802.11f IAPP, IEEE 802.11i, IEEE 802.11h, IEEE 802.11d | | LED Indicator | Power, LAN, WLAN (wireless activity) | | Antenna | 14dBi patch antenna, polarization, V30° H30° | | PoE | RJ-45 connector for data and power support | | EXT (external antenna connector) | N-Type Female connector (The TEW-ASAL1 is required for use with TRENDnet high gain antennas) | | Dimension (L x W x H) | 250 x 260 x 80 mm (9.8 x 10 x 3.1 in.) | | Weight | 1.6 kg (3.5 lbs.) | | Power Consumption | 6 watts (max.) | | Management | Web browser (HTTP/HTTPS), SNMP, Telnet, SSH | | Wind Speed Support | 210 km/hr | | Waterproof | IP66/67 compliant | | Temperature | Storage: -30° ~ 85°C (-22°F ~ 185°F) Operating: -30° ~ 60°C (-22°F ~ 140°F) | | Humidity | 100% (non-condensing) | | Overload Current Protection | 1.1A | | Power | PoE power injector DC output: 48VDC, 0.4A | | Certifications | CE, FCC | | Wireless | | Frequency | 2.400 to 2.484GHz (Industrial Scientific Medical Band) | | Modulation Technique | 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
802.11g: OFDM, 16/64-QAM | | Data Rate (auto-fallback) | 802.11b: up to 11Mbps 802.11g: up to 108Mbps | | Security | 64/128/152-bit WEP, WPA /WPA2-PSK, WPA/WPA2-RADIUS for AP/CPE mode, WEP/WPA2-PSK for WDS mode MAC filter (20 entries) and IP filter (20 entries) | | Output Power | Up to 27dBm (FCC), 6dBm (ETSI) | | Receiving Sensitivity | 802.11b: -89dBm (typical) @ 11mpbs
802.11g: -74dBm (typical) @ 54Mbps | | Channels | 1~11 channel (FCC), 1~13 channel (ETSI) |  |
|
