The 300Mbps Wireless N ADSL 2/2+ Modem Router delivers both Internet access and a high-performance wireless n network in a single solution.
No need to buy a separate modem and router. Install this device easily and surf the Internet, download files, play games and talk online with 300Mbps wireless n technology.

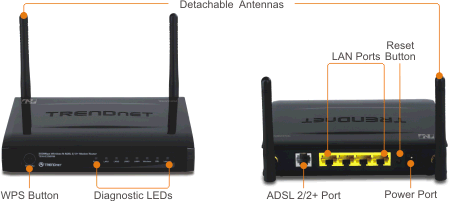

Connect computers, gaming consoles, media players and storage devices to the built in 4-port switch. The latest in wireless encryption and a double firewall protect your valuable data. Advanced antenna technology (MIMO) delivers broad coverage and minimizes dead spots. One-touch Wi-Fi Protected Setup (WPS) synchronizes WPS peripheral devices at the touch of a button.
*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.
| Hardware | | Standards | Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX) Wireless: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n | | ATM | VC and LLC Multiplexing
Bridged/Routed Ethernet over ATM (RFC1483/2684)
OAM F4/F5 loop-back
PPP over ATM (RFC2364)
PPP over Ethernet (RFC2516) | | WAN Port (ADSL line Interface) | 1x RJ-11 port
Complies with ADSL standards
- ANSI T1.413 Issue2
- G.992.1 (G.dmt, Annex A)
- G.992.2 (G.lite)
Complies with ADSL2 standard
- G.992.3 (G.dmt.bis)
Complies with ADSL2+ standard
- G.992.5 Annex A | | LAN | 4 x 10/100Mbps Auto-MDIX ports | | WPS Button | Enables Wi-Fi Protected Setup (WPS) function | | Reset Button | Reset to factory defaults | | UPnP | UPnP IGD 1.0 compliant | | Firewall | NAT, SPI, Access Control, URL Content Filter | | LED Indicator | Security, Power, WPS, LAN1~LAN4, WLAN, ADSL and Internet | | Power Adapter | 12V DC, 1A external power adapter | | Power Consumption | 6.1 watts (max.) | | Dimension (L x W x H) | 150 x 140 x 26mm (5.9 x 5.7 x 1.02in.) | | Weight | 275g (9.7oz) | | Temperature | Operation: 0° ~ 40°C (32°F ~ 104°F); Storage: -20° ~ 60°C (-4°F ~ 140°F) non-condensing | | Humidity | Max. 90% (non-condensing) | | Certifications | CE, FCC | | Wireless | | Frequency | 2.415 ~2.484GHz band | | Modulation | DBPSK/DQPSK/CCK/OFDM (BPSK/QPSK/16-QAM/64-QAM) | | Antenna | 2 x 2dBi detachable dipole antennas | | Data Rate | 802.11b: up to 11Mbps
802.11g: up to 54Mbps
802.11n: up to 270Mbps | | Security | WEP(HEX/ASCII): 64/128-bit WPA(AES/TKIP): WPA/WPA2-RADIUS, WPA-PSK/WPA2-PSK | | Output Power | 802.11b: 18dBm (typical) 802.11g: 15dBm (typical)
802.11n: 13dBm (typical) | | Receiving Sensitivity | 802.11b: -83dBm (typical) @ 11Mbps
802.11g: -72dBm (typical) @ 54Mbps
802.11n: -63dBm (typical) @ 270Mbps | | Channels | 1~ 11 (FCC), 1~13 (ETSI) |  |
|
