TRENDnet Wireless N Gaming Adapter TEW-647GA Overview, Specs



The Wireless N Gaming Adapter (TEW-647GA) connects your favorite Ethernet-ready gaming console to a lag-free wireless n network. No need to locate your gaming station near an Internet connection—cut your cables and start winning with high-performance wireless n. Setup is quick and simple, with no drivers to install. Works with Nintendo Wii®, Xbox®, Xbox 360® and PlayStation 2 and 3®. Connect multiple gaming consoles wirelessly and play head-to-head or challenge others over the Internet in multiplayer mode.

The latest in wireless encryption ensures wireless security. Advanced Multiple Input Multiple Output (MIMO) antenna technology reduces wireless dead spots. Wireless Protected Setup (WPS) lets you integrate other WPS devices into your secured network quickly.

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.

Hardware
StandardsIEEE 802.11b, IEEE 802.11g and IEEE 802.11n

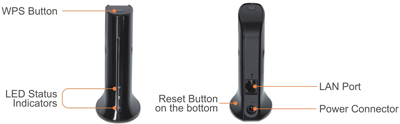

LED IndicatorWPS, WLAN, LAN, Power
Power ConsumptionStandby mode: 160mA (max) ; Transmit mode : 210mA (max)
Supported OS (for Wizard)Windows 2000/XP(32/64-bit)/Vista (32/64-bit)
Supported BrowserInternet Explorer 6.0 or above, Netscape 7.0 or above, Safari, Firefox
Dimensions (LxWxH)74 x 104 x 45mm (2.91 x 4.09 x 1.77in.)
Weight80g (2.8oz)
TemperatureOperating: 0° ~ 40° C (32° ~ 104° F); Storage: -20° ~ 65° C (-4° ~ 149° F)
HumidityOperating: 10% ~ 85% max (non-condensing); Storage: 5% to 90% (non-condensing)
CertificationFCC, CE
Wireless
Frequency2.412 ~ 2.472 GHz
AntennaBuilt-in 2 antennas
Data Rate (auto fallback)802.11b: up to 11Mbps
802.11g:up to  54Mbps
802.11n: up to 300Mbps
Output Power802.11b: 18dBm (typical)
802.11g: 15dBm (typical)
802.11n : 11dBm (typical)
Receiving Sensitivity802.11b: -84dBm (typical)
802.11g: -73dBm (typical)
802.11n: -69dBm (typical)
Encryption64/128-bit WEP (Hex & ASCII), WPA-PSK/WPA2-PSK (AES/TKIP)
Channels1~11 (FCC), 1~13 (ETSI)



*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions.
