TRENDnet Wireless 1-Port Parallel Print Server TEW-P1PG Overview, Tech Specs

TEW-P1PG is a print server that transforms virtually any stand-alone Parallel networkable printer into a shared network printer. The TEW-P1PG provides IEEE 802.11g 54Mbps wireless interface for integrating into existing wireless network. The TEW-P1PG is designed for printers equipped with parallel compliant printer port and it is an ideal network solution to convert conventional parallel printer into a shared resource on the network.

Hardware
Standards:
  • Wired: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
  • Wireless: IEEE 802.11b/g

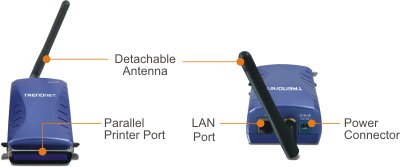

Printer Interface: IEEE 1284 Male Centronics (DB-36)
LAN Port:10/100Mbps Auto-Negotiation UTP/STP RJ-45 Port
CPU/ SDRAM / Flash ROM:RDC 2880 / 8Mbyte/2Mbyte
LED: Power, LPT, Link/Act
Transport Protocol: TCP/IP, SMB, NetBEUI, AppleTalk
TCP/IP Protocol Supported:BOOTP, SNMP, Telnet, TFTP, FTP, LPD, RARP, DHCP, IPP
Supported OS:

Windows95/98(SE)/ME/NT/2000/XP/2003 Server
Netware 5.x NDPS LPR Remote Printing (TCP/IP),
HP-UX Unix, Sun OS, Solaris, SCO Unix, AIX, Unixware, Linux & Mac OS (AppleTalk)

Management:PS Wizard, PS Utility or Web-Browser Configuration
Power:5V DC 2.5A External Power Adapter
Dimensions:57 x 90 x 32mm (2.2 x 3.5 x 1.3 in.) Not Including Antenna
Weight:85g (3.0 oz.)
Temperature:
  • Operating : 0 ° ~50 ° C (32 ° ~122 ° F)
  • Storage: -25 ° ~55 ° C (-13 ° ~131 ° F)
Humidity:10%~90% (non-condensing)
Certification:CE, FCC
Wireless
Frequency:2.4 ~ 2.4835 GHz (Industrial Scientific Medical Band)
Encryption64/128-bit WEP(ASCII/HEX), WPA-PSK
AntennaDetachable 2dBiDiversity Antenna (Reverse SMA Connector)
Data Rate (Auto Fallback)

802.11g:54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps
802.11b: 11Mbps, 5.5Mbps, 2Mbps and 1Mbps
